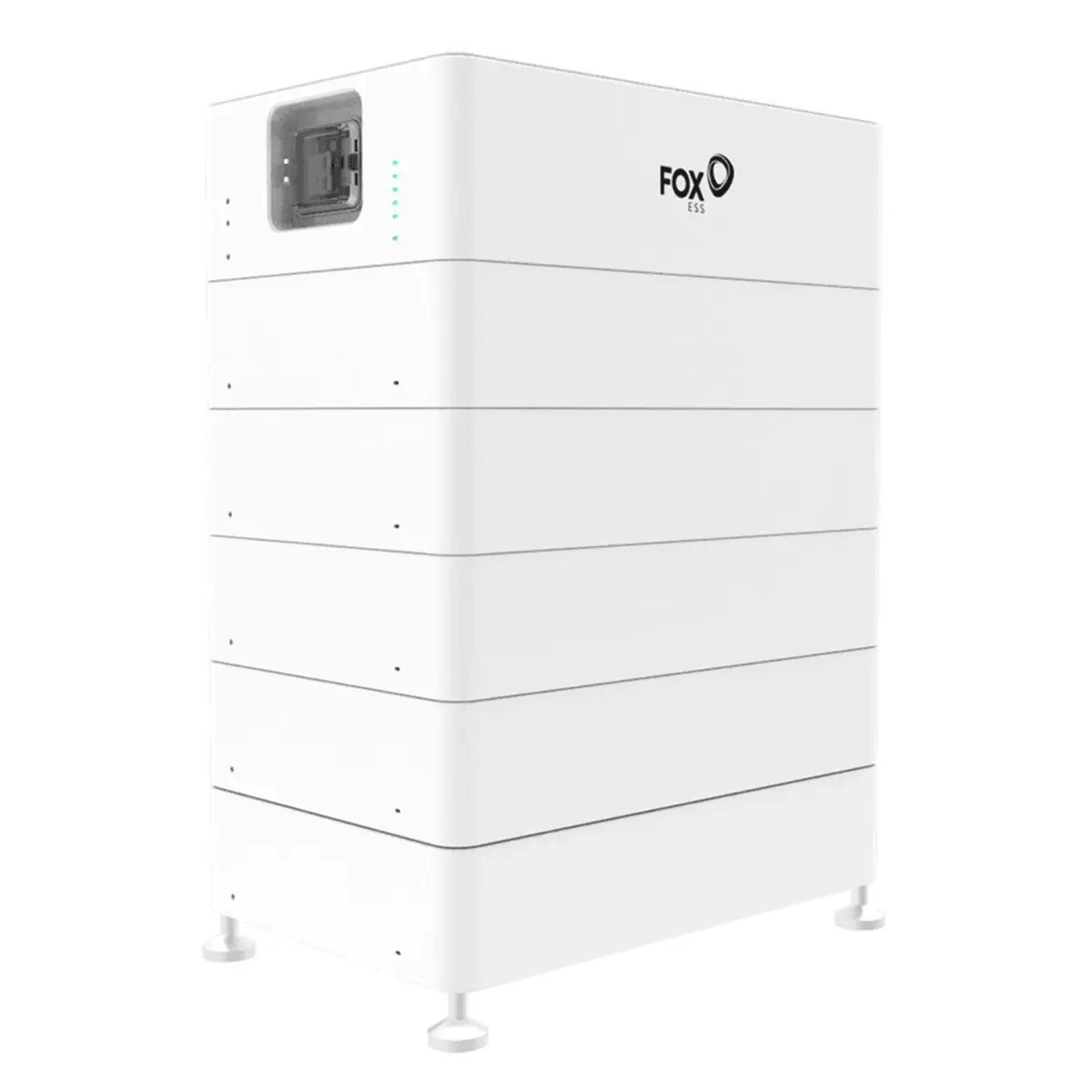

Fox ECS HV ECM2900 Connector Type A, 17.28kWh 1x Master 5x Slave Online
20 people are viewing this right now
11 products sold in last 1 hour
Selling fast! Over 20 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: FE-HV-EC-A-6-2.9-17.4Â Storage Systems – Li-ion Battery Pack
- 2.88kWh Capacity
- Scalable to 20.16kWhÂ
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN RS485 Communication
- High Voltage
-
- Weight: 213.95 kg
- Battery Type: Lithium Ion
- Nominal Energy: 17280 Wh
- Depth of discharge: 90.00 %
- Voltage: 345 V
- Continuous Discharge Rate (Normal Use): 17280 W
- Maximum Discharge Rate (5 Minutes): 17280 W
- Surge Discharge Rate (15 Seconds): 22464 W
- Maximum Charge Rate (5 Minutes): 17280 W
The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.
Weight: 196.7kg
Dimensions (Width, Hight, Depth): 570mm x 830mm x 380mm
Don t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it s 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves).ÂIMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2 s of the ECS batteries. We stock both the Connector type A and Connector type B variations.Title Default Title
