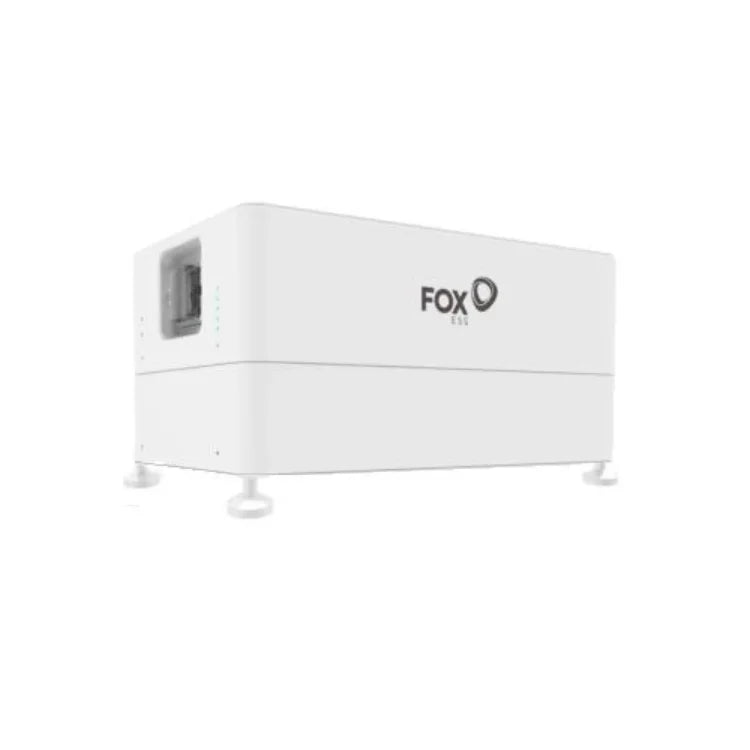

Fox ECS 2.9kWh CONNECTOR TYPE A – Stack of 2 (5.76kWh Useable Storage) incl. Master

ECM2900-4A2C

• 2.88kWh Capacity
• Scalable to 20.16kWh
• 90% Depth of Discharge
• Wide Temperature Tolerance
• Easy Installation
• CAN RS485 Communication
• High Voltage

• The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.

  Weight: 67.1kg

  Dimensions (Width, Hight, Depth): 580mm x 350mm x 380mm

  Don t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it s 5 years as standard.

  This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves).



  IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2 s of the ECS batteries. We stock both the Connector type A  and Connector type B variations.

  Weight: 73.15 kg

  Battery Type: Lithium Ion

  Nominal Energy: 5760 Wh

  Depth of discharge: 90.00 %

  Voltage: 115 V

  Continuous Discharge Rate (Normal Use): 5760 W

  Maximum Discharge Rate (5 Minutes): 5760 W

  Surge Discharge Rate (15 Seconds): 7488 W

  Maximum Charge Rate (5 Minutes): 5760 W
