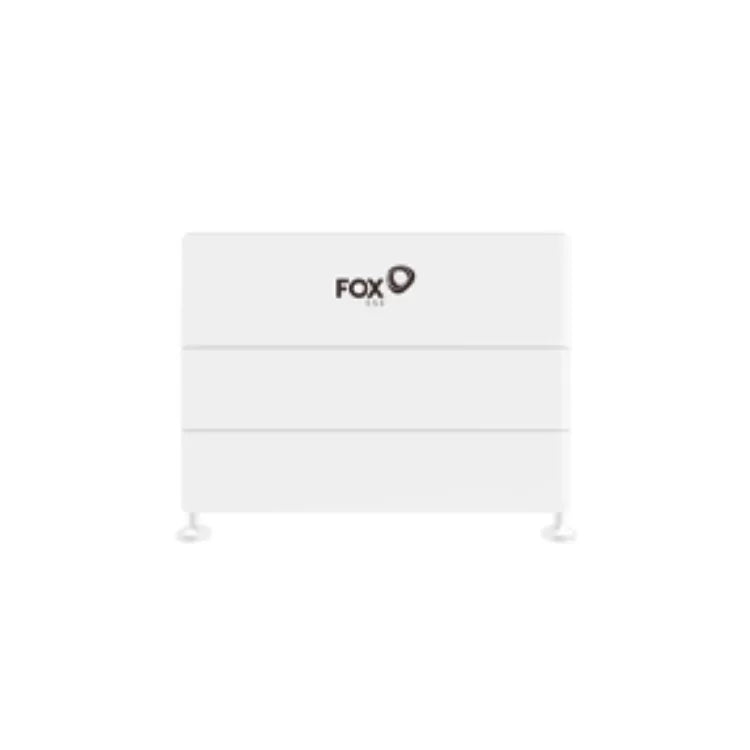

Fox ECS HV ECM2900 Connector Type A, 8.64kWh 1x Master 2x Slave Online
21 people are viewing this right now
16 products sold in last 19 hours
Selling fast! Over 8 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: FE-HV-EC-A-3-2.9-8.7Â Storage Systems – Li-ion Battery Pack
ECS 2.9kWh CONNECTOR TYPE A – Stack of 3 (8.64kWh Useable Storage) Incl. Master
- 2.88kWh Capacity
- Scalable to 20.16kWhÂ
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN RS485 Communication
- High Voltage
-
- Weight: 108.35 kg
- Battery Type: Lithium Ion
- Nominal Energy: 8640 Wh
- Depth of discharge: 90.00 %
- Voltage: 172 V
- Continuous Discharge Rate (Normal Use): 8640 W
- Maximum Discharge Rate (5 Minutes): 8640 W
- Surge Discharge Rate (15 Seconds): 11232 W
- Maximum Charge Rate (5 Minutes): 8640 W
The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.
Weight: 99.5kg
Dimensions (Width, Hight, Depth): 570mm x 470mm x 380mmÂ
Don t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it s 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves).ÂIMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2 s of the ECS batteries. We stock both the Connector type A and Connector type B variations.Title Default Title
