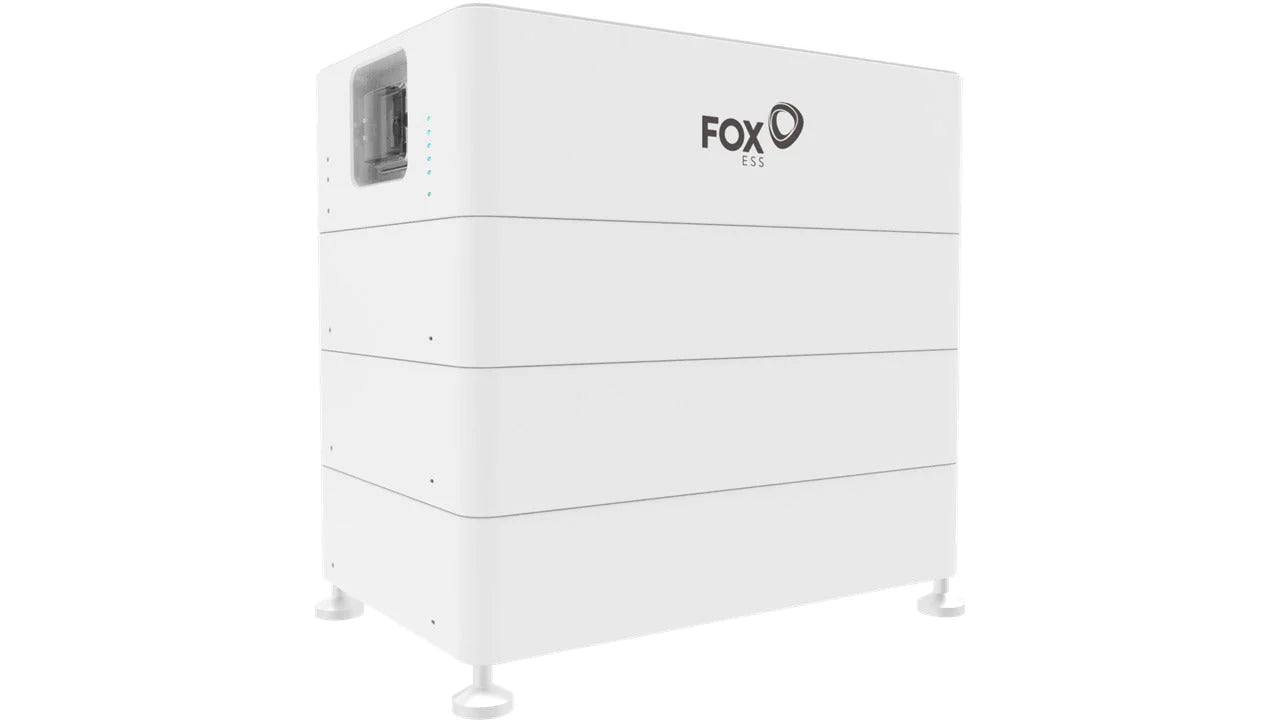

Fox ECS HV ECM4800-2H, 18.64kWh 1x Master 3x Slave Sale
29 people are viewing this right now
16 products sold in last 2 hours
Selling fast! Over 17 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: FE-HV-EC-4-4.8-19.2Â Storage Systems – Li-ion Battery Pack
- 4.74kWh Capacity
- Scalable to 33.2kWhÂ
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN RS485 Communication
- High Voltage
-
- Weight: 158.5 kg
- Battery Type: Lithium Ion
- Nominal Energy: 18640 Wh
- Depth of discharge: 90.00 %
- Voltage: 179 V
- Continuous Discharge Rate (Normal Use): 4480 W
- Maximum Discharge Rate (5 Minutes): 8960 W
- Surge Discharge Rate (15 Seconds): 11648 W
- Maximum Charge Rate (5 Minutes): 8960 W
The quick & easy install feature allows for more ECM4800-2H battery modules to be added post installation.
Weight: 160kg
Dimensions (Width, Hight, Depth): 570mm x 662mm x 380mm
Don t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it s 5 years as standard.Â
This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)ÂTo work with the H3 AC3 range of inverters, there is a minimum battery stack requirement of 5 so that it is within the voltage range.ÂTitle Default Title
