Part No: FE-HV-EQ-6-4.8-28.8 Storage Systems – Li-ion Battery Pack

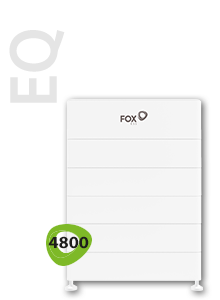

Fox EQ 4.66kWh – Stack of 6 (27.96kWh Useable Storage) Incl. Master

EQ4800-L6

• 4.66kWh capacity
• Scalable to 41.94 kWh
• 90% Depth of Discharge
• Large temperature tolerance
• Easy installation
• CAN communication
• High voltage

• The quick & easy install feature allows for more EQ4800 battery modules to be added post installation.

  Weight: 239.5kg

  Dimensions (Width, Hight, Depth): 570mm x 938mm x 380mm

  Don t forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it s 5 years as standard.

  This battery requires a MINIMUM of 2 modules to work (Master + Slave). This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves). Please check Fox Battery Size Guide.

  Weight: 249.5 kg

  Battery Type: Lithium Ion

  Nominal Energy: 27960 Wh

  Depth of discharge: 90.00 %

  Voltage: 268 V

  Continuous Discharge Rate (Normal Use): 2240 W

  Maximum Discharge Rate (5 Minutes): 4480 W

  Surge Discharge Rate (15 Seconds): 5785 W

  Maximum Charge Rate (5 Minutes): 4480 W
