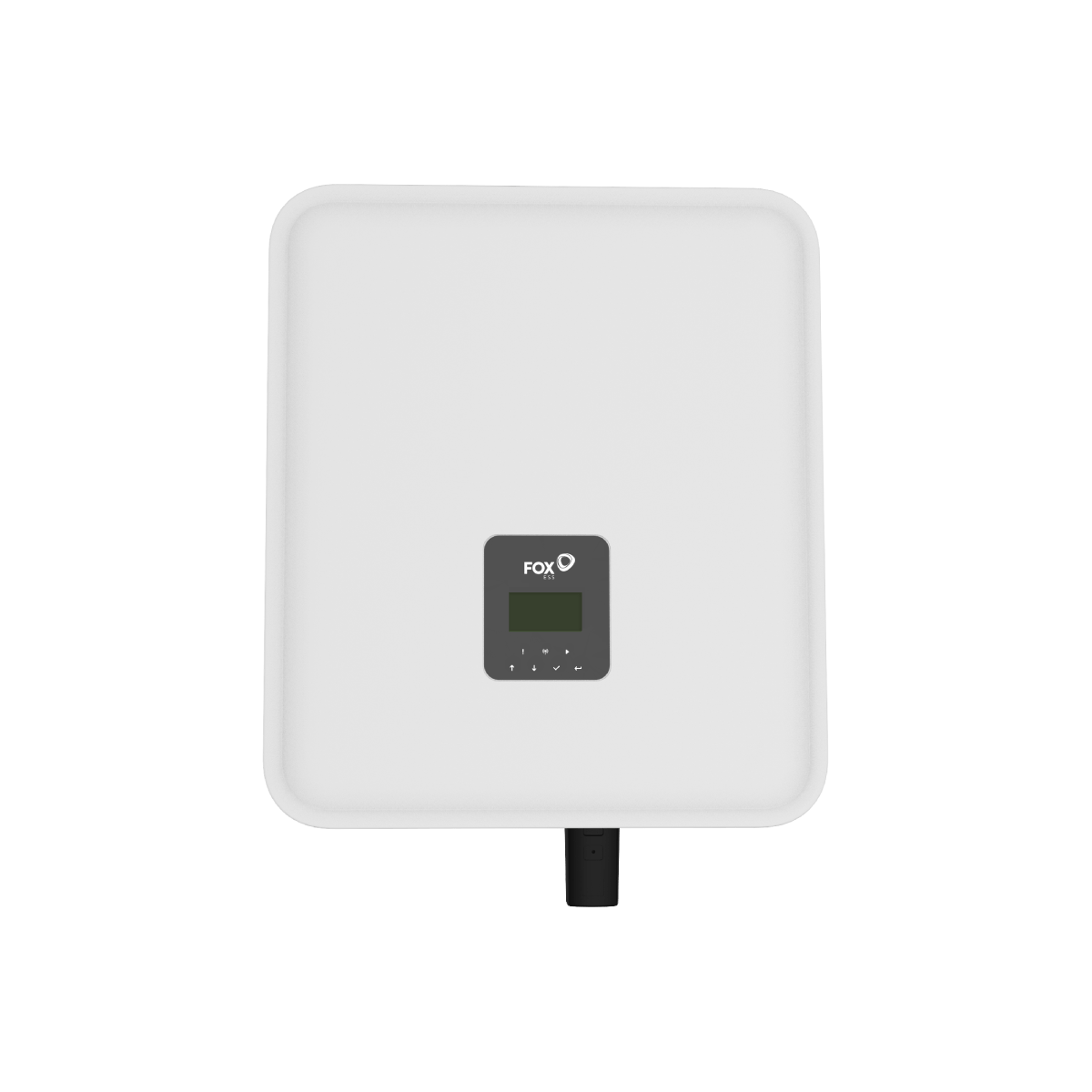

FOX ESS H3 6.0KW 3PH Hybrid AC Inverter For Sale

Part No: FE-H3-6.0 Storage Systems – Hybrid Inverter

Harness the power of the sun day and night with FoxESS groundbreaking line of hybrid inverters.

• Easy installation – Plug & Play, built-in fuse protection.
• Maximum yields – Low starting voltage, 97.3% maximum efficiency
• Maximum flexibility – 3 battery types to choose from, True 3-phase backup power
• Monitoring – Monitor remotely via app or web portal.

• FoxESS inverters are configurable with the following batteries:

  • 1x FE-HV-BMS + (4-8)x FE-HV-2600
  • 1x ECM-2900 (master) + 2-5x ECS-2900 (slave)
  • 1x ECM-4100 (Master) + 2-5x ECS-4100 (Slave)

  • FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo.

    3PH Smart Meter included in packaging.

    Don t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it s 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

    PLEASE NOTE: This product requires the following meter for full operation: FE-3PH-METER-CT

    Supplier Part No: FE-H3-6.0

    Weight: 28 kg

    Rated Power: 6,000 W

    Min PPT Voltage: 160 V

    Max PPT Voltage: 1,000 V

    DC Startup Voltage: 160 V

    DC Shutdown Voltage: 160 V

    Max Input Voltage: 1,000 V

    Max DC Power: 9,000 W

    Max AC Power (5 Minutes): 6,000 W

    Surge AC Power (1 Second): 9,000 W

    Max DC Current: 14 A

    Max DC Inputs: 2

    Has DC Fuses: 1

    Connector: MC4

    Included Connectors: 4

    Euro Efficiency: 97.8 %

    Transformer: N A

    MPPT Quantity : 2

    Has Integrated DC Switch: Yes

    Warranty: 5 years
