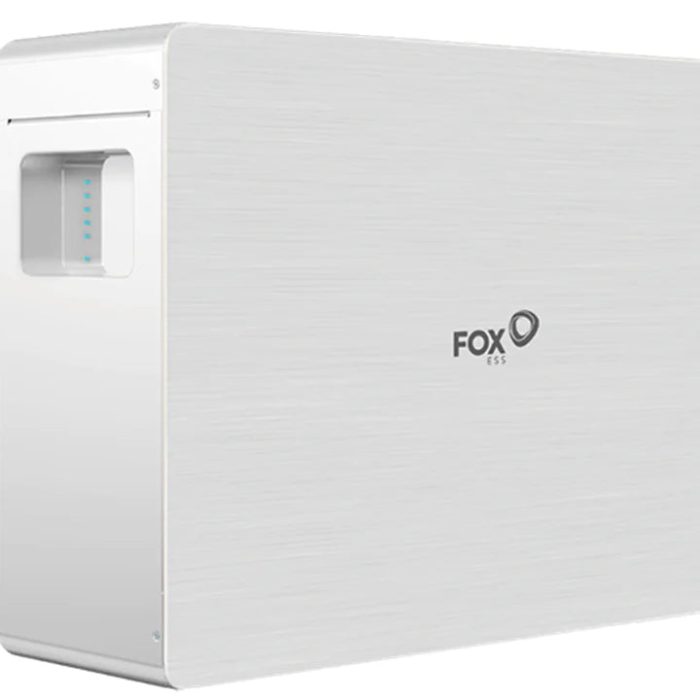

Part No: FE-LV52 Storage Systems – Li-ion Battery Pack

Fox LV52

• 90% Depth of Discharge
• Wide Temperature Tolerance
• Easy Installation
• ≥6000 Life Cycles
• CAN RS485 Communication
• Low Voltage

• Don t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it s 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

  The LV52 and the LV54 ARE compatible with eachother.

  When installing 2-4 batteries,  two combiner box s will be required.

  The LV52 is not compatible with the LV5200

  Please note: The CAN cable currently shipped with the Fox ESS LV54 battery is made-up at one end only (the battery end). The Installer will need to make up the cable at the inverter end.

  Pending Documents: Warranty.

  Supplier Part No: LV52

  Weight: 54 kg

  Battery Type: Lithium Ion

  Nominal Energy: 5120 Wh

  Depth of discharge: 90.00 %

  Voltage: 51 V

  Continuous Discharge Rate (Normal Use): 5120 W

  Maximum Discharge Rate (5 Minutes): 5120 W

  Surge Discharge Rate (15 Seconds): 7500 W

  Maximum Charge Rate (5 Minutes): 5120 W
