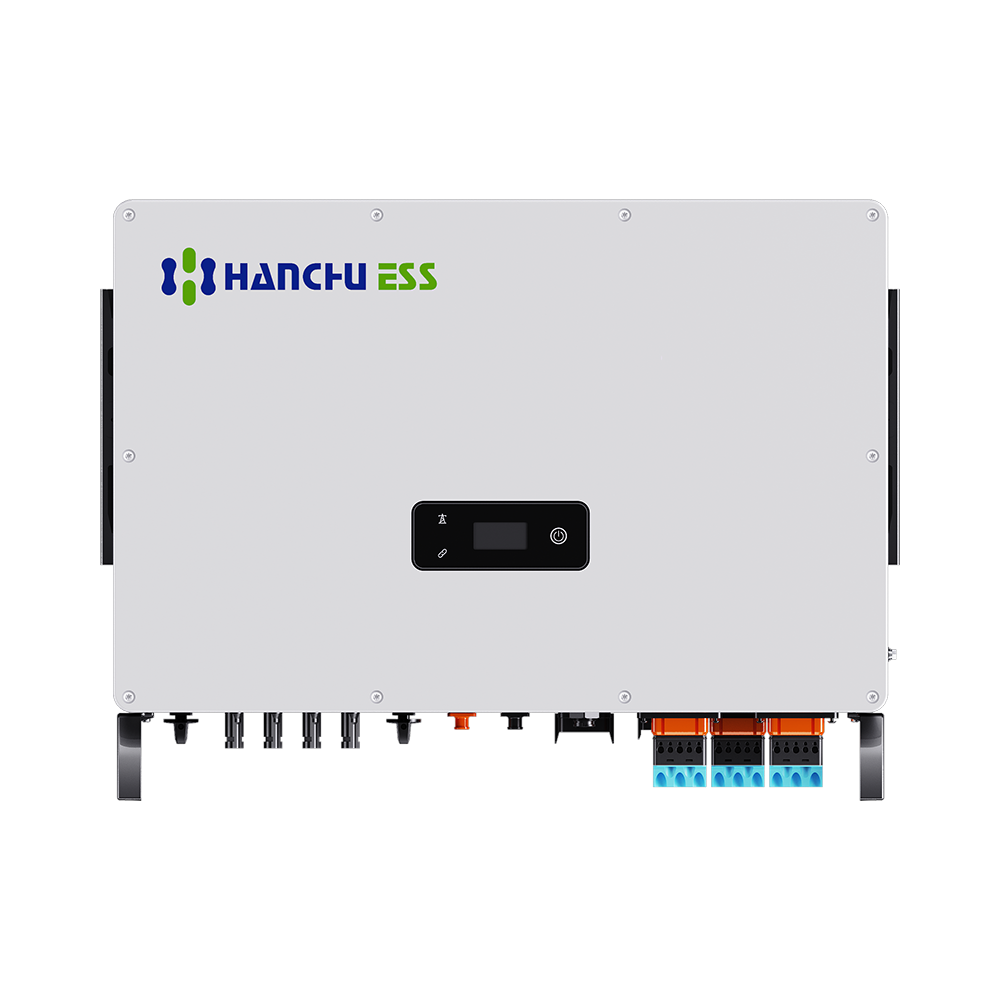

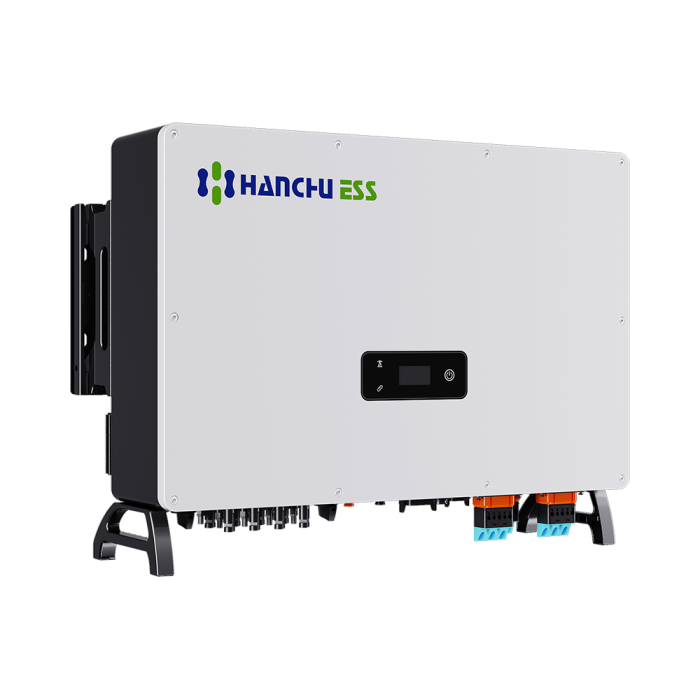

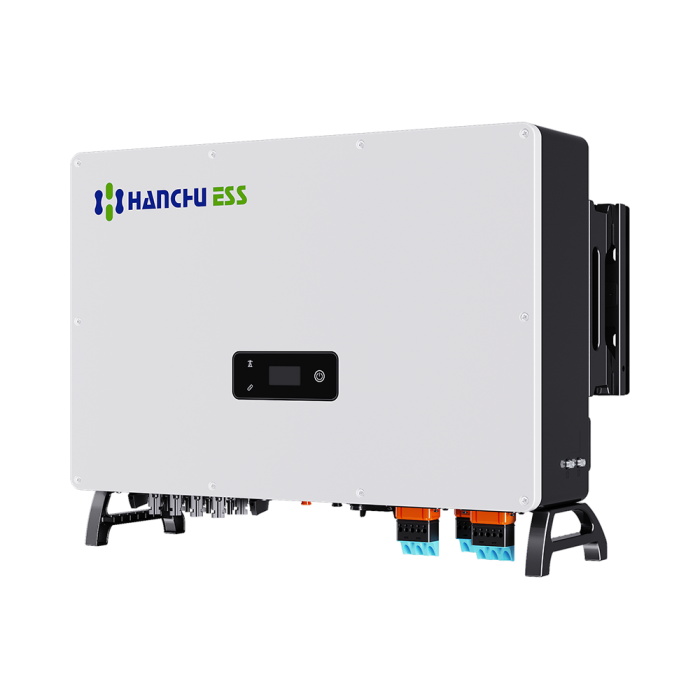

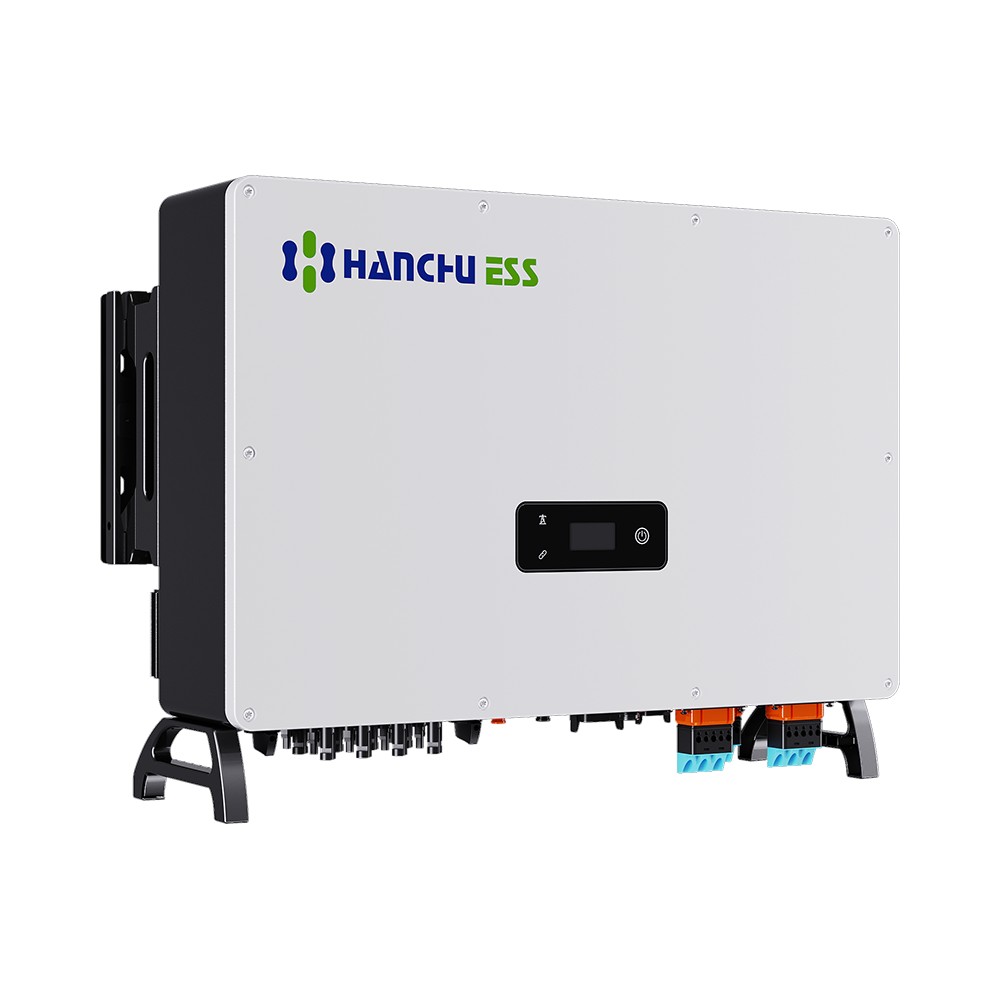

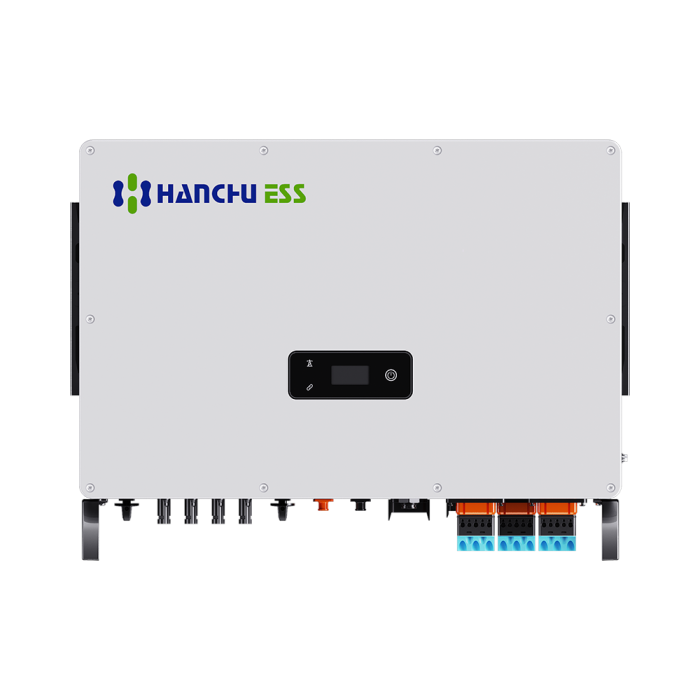

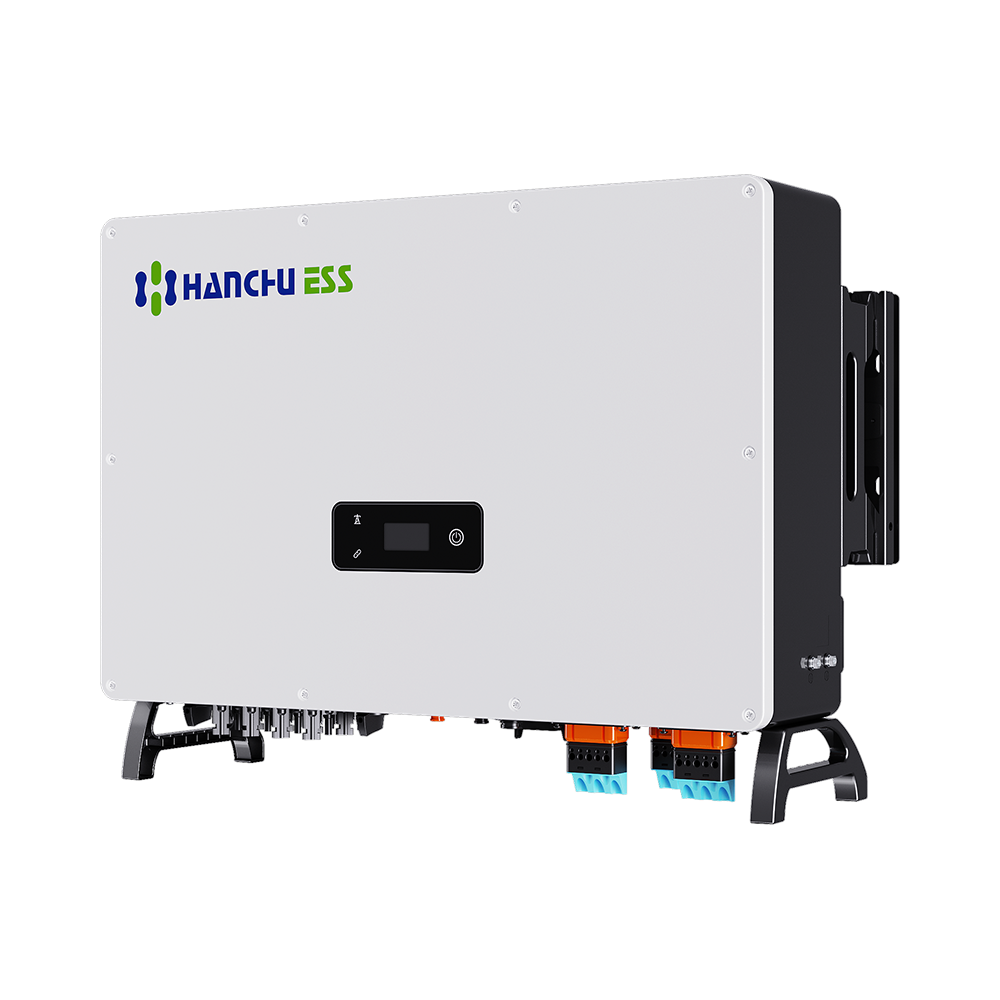

Hanchu C&I Three Phase Hybrid Inverter 25kW Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Compatible Products
Hanchu High Voltage Battery 9.4kWh
Hanchu High Voltage Battery 9.4kWh – BMS
Â
Ultra Performance
![src=]()
Exceptional Efficiency
Achieves up to 98.8% peak efficiency, maximising the conversion of generated energy into usable power and significantly reducing energy costs.
![src=]()
Robust Power Handling
Supports up to 110% AC output overloading and up to 120% back-up output overloading for 60 seconds, ensuring reliable performance even during peak demand.
![src=]()
Advanced Multi-MPPT Support
Equipped with 4 MPPTs, enabling optimal solar energy capture across multiple roof orientations and shading conditions to maximise overall solar utilization.
Reliable Operation
![src=]()
Ultra-Fast Switching Time
With EPS switching time of less than 20 milliseconds, it ensures continuity of critical operations without interruption during power outages.
![src=]()
Broad Voltage Compatibility
Supports an extensive battery voltage range from 135V to 750V, making it compatible with various high-voltage battery systems for greater versatility.
![src=]()
Comprehensive Safety Protection
Offers built-in surge protection, insulation resistance monitoring, and multi-layered safeguards against over-temperature and residual currents, ensuring protection for both the equipment and the premises.
Easy Maintenance
![src=]()
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
![src=]()

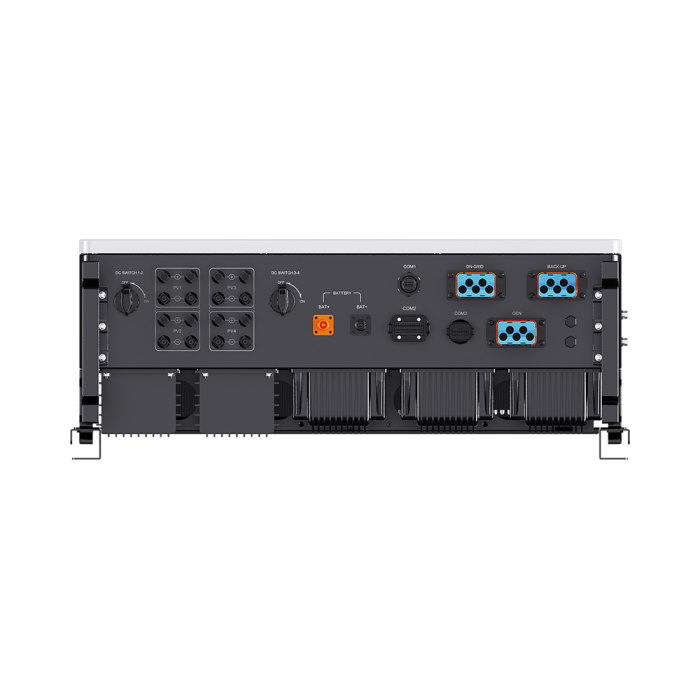

Easy Installation

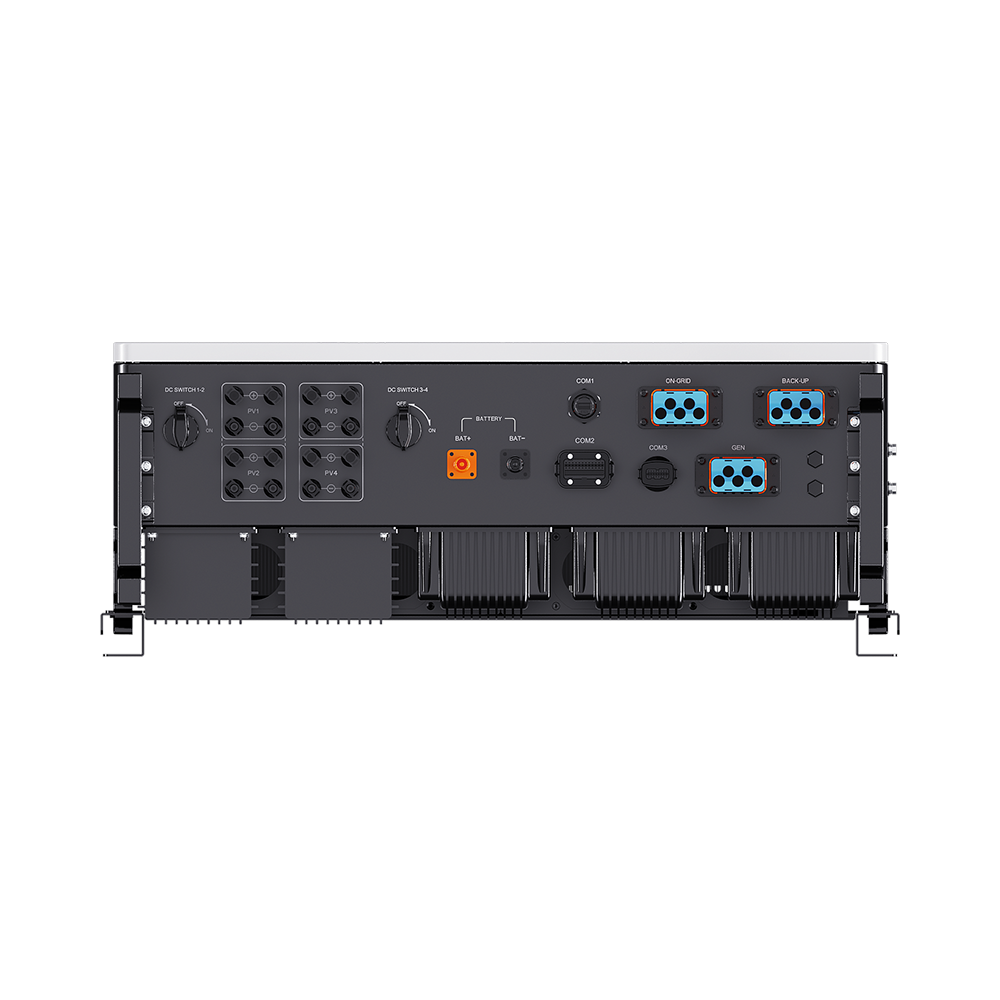

The horizontal design and quick plug-in terminals enable fast and convenient installation, minimising labour time and reducing complexity.
![src=]()
Advanced Connectivity
Offers simple configuration through WiFi via the iESS platform, streamlining setup and integration into existing systems.
PV Input
- Max. PV array power : 37.5kW
-
- Max. input voltage : 1000V
-
- MPPT voltage range rated input voltage : 200-850V
-
- Min. input voltage start voltage : 135V
-
- No. of independent MPPT trackers strings per MPPT input : 4
-
- Max. input current per MPP tracker : 30A
-
- Max. short-circuit current per MPP tracker : 40A
-
Battery Input
- Nominal battery voltage :
-
- Battery voltage range : 135-750V
-
- Max. charging discharge power : 25000W
-
- Max. charging current Max. discharging current : 100A
-
- Battery type : LFP
-
AC Output
- AC voltage range Nomlnal AC voltage : 3L N PE;220 380V;230 400V;240 415V
-
- Rated AC grid frequency : 50Hz 60Hz
-
- Rated apparent power : 25.0kW
-
- Max. apparent power : 27.0kVA
-
- Rated grid output current (@230V) :
-
- Max. grid output current : 42.0A
-
AC Input
- Rated grid voltage : 3L N PE;220 380V;230 400V;240 415V
-
- Rated apparent power : 25.0kW
-
- Max. input apparent power from grid : 30.0kVA
-
- Rated input curent from grid :
-
- Max. input current from grid :
-
EPS Output
- Nominal output voltage : 3L N PE;220 380V;230 400V;240 415V
-
- Nominal output frequency : 50Hz 60Hz
-
- Rated apparent power : 25.0kW
-
- Max. output apparent power : 27.5kVA
-
- Peak output apparent power : 30kVA | 60s
-
- Max. output current : 42.0A
-
- Max. switch time : ＜20ms
-
Efficiency
- MPPT efficiency : 98.80%
-
- Euro efficiency Max. efficiency : 98.30%
-
- Max. battery to load efficiency :
-
General Data
- Dimensions (W*H*D) (mm) : 800*620*300
-
- Device weight : 76.0Kg
-
- Operating temperature range : -30℃~+60℃
-
- Noise emissions (typical) : ＜50dB
-
- Standby consumption : ＜15W
-
- Degree of protection (as per lEC 60529) : IP65
-
Features
- User interface : OLED&LED&APP
-
- Communication with BMS :
-
- Communication with meter :
-
- Communication with portal :
-
- Other communication :
-
- Communication : RS485 CAN WiFi LAN(Optional)
-
- Integrated power control Zero export control : Integrated Integrated
-
- Certifications : IEC 62109 EN 61000 EN 50549-1 NTS VDE-4105 G99 G100 CEI NRS 097 CEI 0-21 NEN
-
- Warranty : 12 years
-
