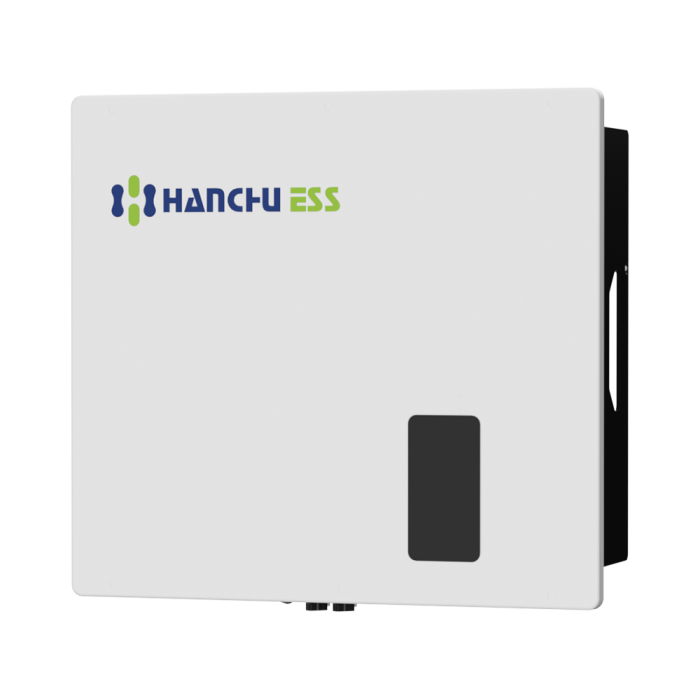

Hanchu Single Phase Hybrid Inverter 6.0kW on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Compatible Products
Hanchu Low Voltage Battery 3.2kWh
Hanchu Low Voltage Battery 3.68kWh
Hanchu Low Voltage Battery 5.12kWh
Hanchu Low Voltage Battery 9.4kWh
Ultra Performance
High PV Input Capability
Supports up to 150% oversizing to allow maximum annual generation.
Peak Efficiency
Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output.
Powerful Charge and Discharge
Handles up to 100A (5kW) charge discharge from batteries allowing fast charging and covering larger loads.
Reliable Operation
Emergency Power Supply (EPS)
Backup power is available for critical installations that require uninterrupted operation during power outages.
Rapid Switch Time
Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages.
Shadow Scan Feature
Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade.
Smart Energy Management
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
Â
Octopus Tariff Integration
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
Â
HANCHU ESS – SINGLE PHASE HYBRID INVERTER – CLICK HERE FOR FEATURES
Â
12 Years Warranty On All Hanchu Products.
All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.

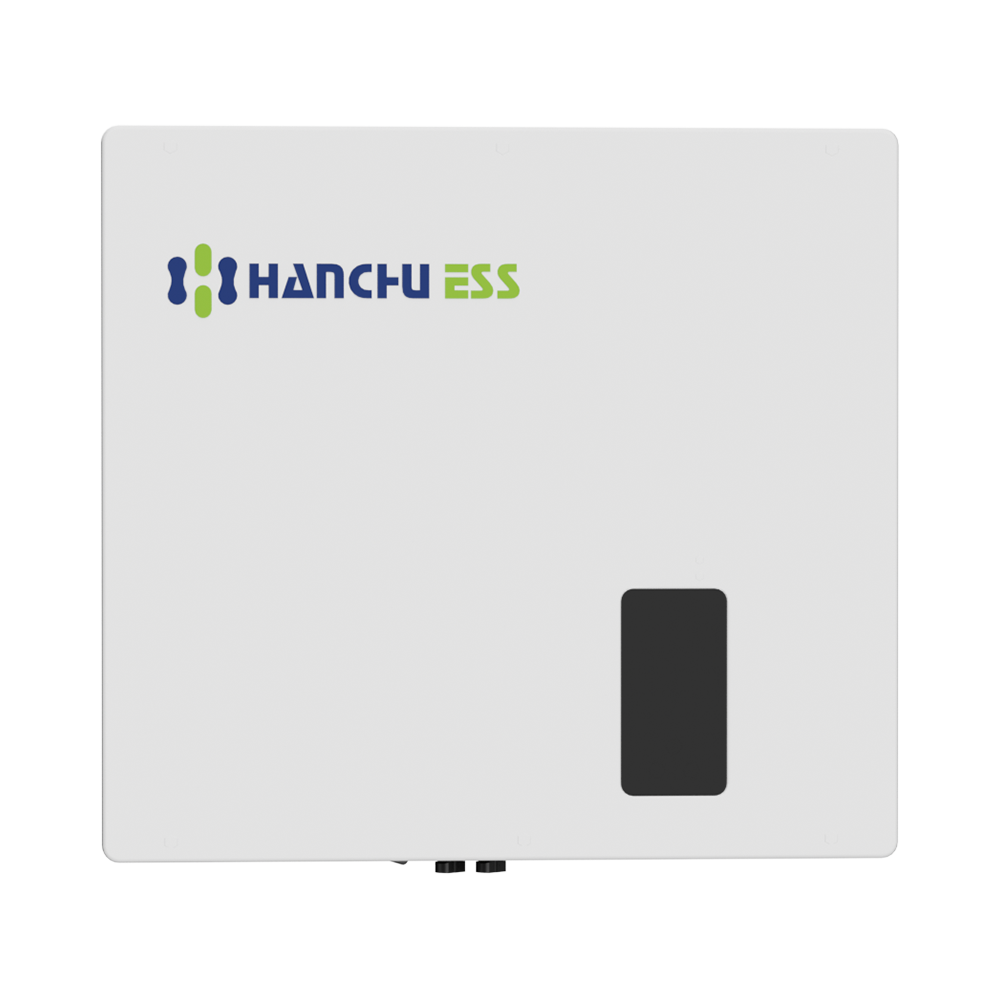

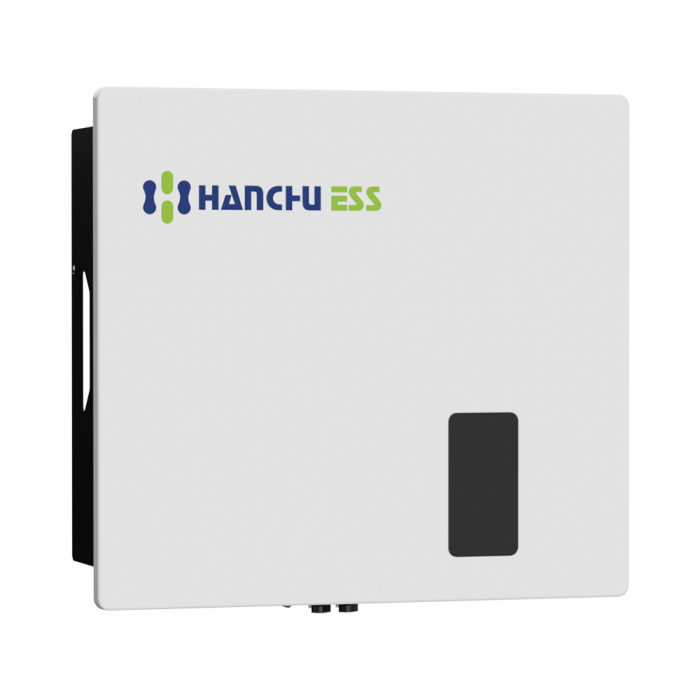

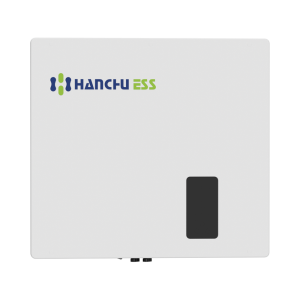

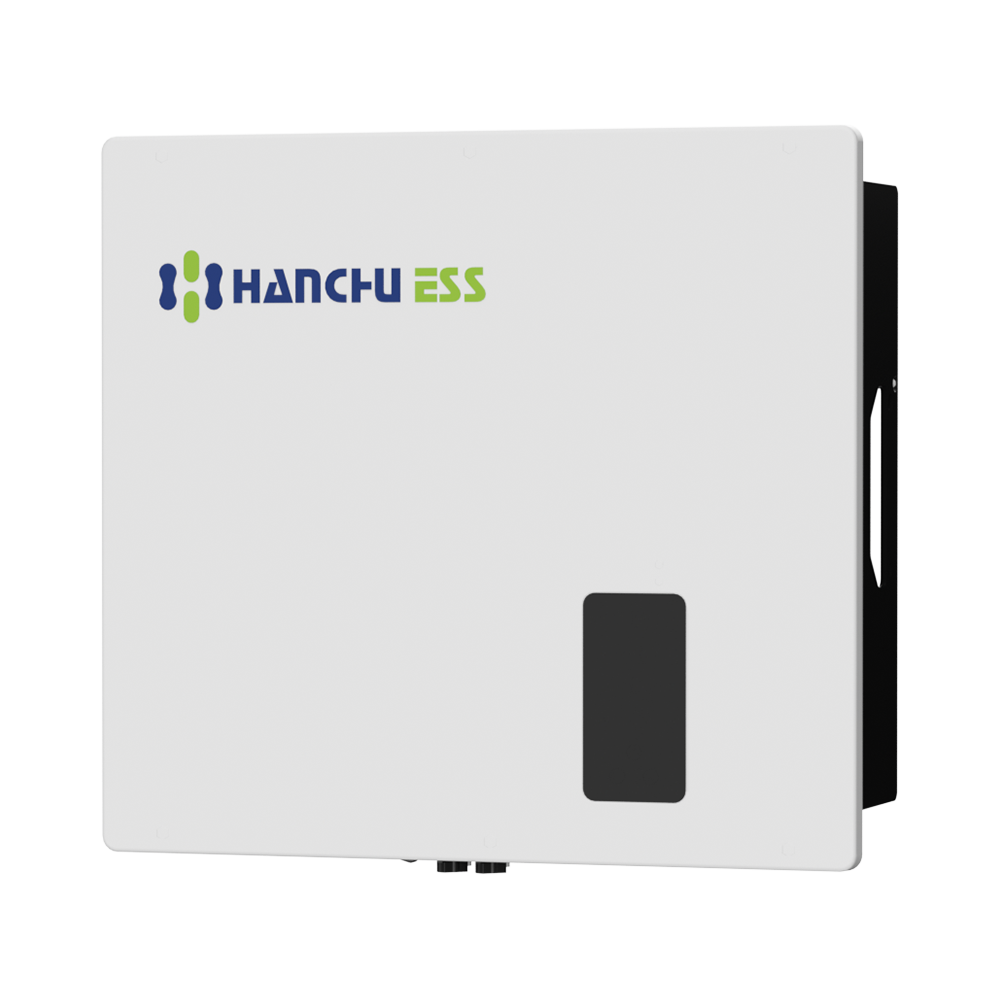

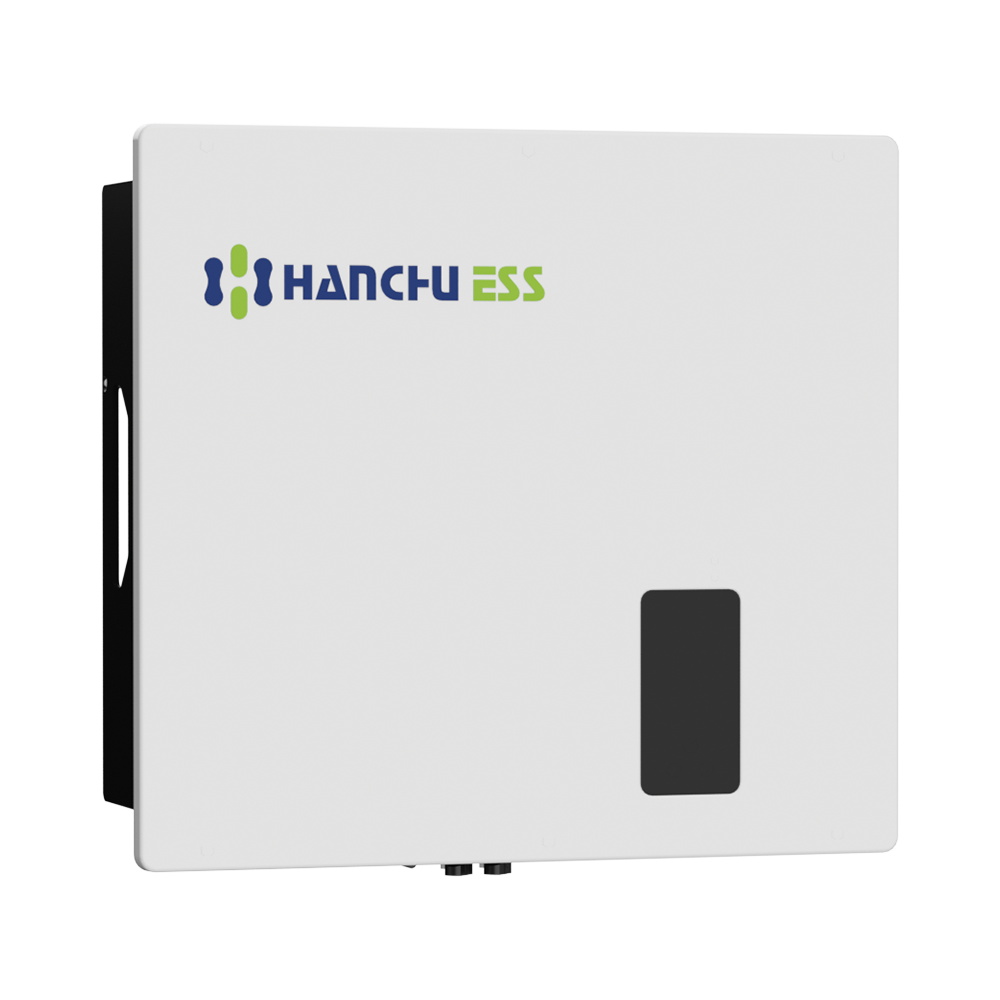

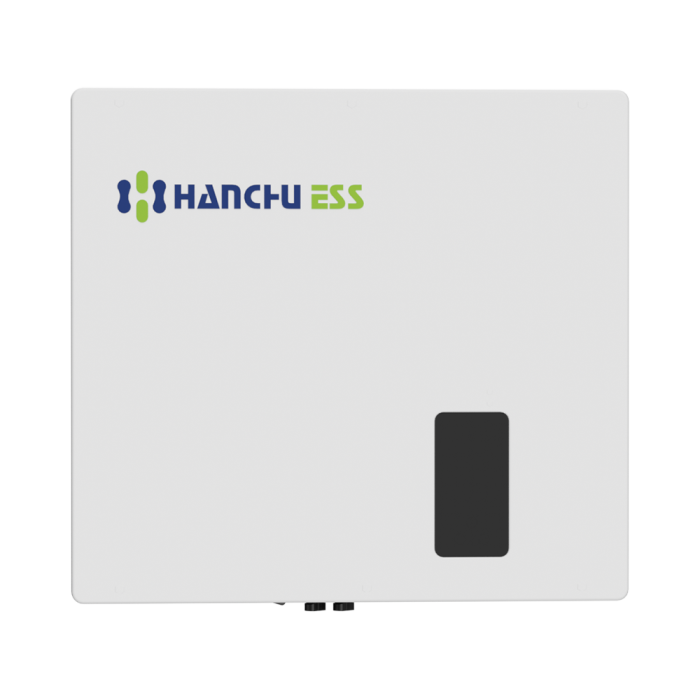

HESS-HY-S-6.0K
The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3 3.68 4 5 6kW, catering to various scales and application scenarios.
Technical Specifications
PV Input
- Max. PV array power : 9000Wp
-
- Max. input voltage : 550V
-
- MPPT voltage range rated input voltage : 40V to 530V 380V
-
- Min. input voltage start voltage : 40V 50V
-
- No. of independent MPPT trackers strings per MPPT input : 2 1
-
- Max. input current per MPP tracker : 16A
-
- Max. short-circuit current per MPP tracker : 20A
-
Battery Input
- Nominal battery voltage : 48V 51.2V
-
- Battery voltage range : 40V to 60V
-
- Max. charging discharge power : 5000W 5000W
-
- Max. charging current Max. discharging current : 100A 100A
-
- Battery type : LFP
-
AC Output
- AC voltage range Nomlnal AC voltage : 180V to 280V 230V
-
- Rated AC grid frequency : 50Hz 60Hz
-
- Rated apparent power : 6000VA
-
- Max. apparent power : 6000VA
-
- Rated grid output current (@230V) : 26.1A
-
- Max. grid output current : 27.3A
-
AC Input
- Rated grid voltage : a.c.230V
-
- Rated apparent power : 6000VA
-
- Max. input apparent power from grid : 6000VA
-
- Rated input curent from grid : a.c.26.1 A
-
- Max. input current from grid : a.c.27.3 A
-
EPS Output
- Nominal output voltage : 230V
-
- Nominal output frequency : 50 Hz 60Hz
-
- Rated apparent power : 5000VA
-
- Max. output apparent power : 5000VA
-
- Peak output apparent power : 7500 VA | 10s
-
- Max. output current : 21.7A
-
- Max. switch time : ≤10ms
-
Efficiency
- MPPT efficiency : 99.90%
-
- Euro efficiency Max. efficiency : 97% 97.6%
-
- Max. battery to load efficiency : 94.70%
-
General Data
- Dimensions (W*H*D) (mm) : 483*455*193.5
-
- Device weight : 25.1Kg
-
- Operating temperature range : -25℃ ~60℃
-
- Noise emissions (typical) : 30 dB(A)
-
- Standby consumption : <10 W
-
- Degree of protection (as per lEC 60529) : IP66
-
Features
- User interface : LED & APP
-
- Communication with BMS : RS485 CAN
-
- Communication with meter : RS485
-
- Communication with portal : WiFi LAN 4G Bluetooth
-
- Other communication : DRM
-
- Communication :
-
- Integrated power control Zero export control : Integrated Integrated
-
- Certifications : EN 61000 IEC 62109 EN 50549 G98 G99 G100 VDE 4105 VFR 2019 NRS 097 CEI 0-21 NTS IEC 61683 IEC 61727 IEC 62116
-
- Warranty : 12 years
-
Title
Default Title
Review Cart
Ultra Performance
High PV Input Capability
Supports up to 150% oversizing to allow maximum annual generation.
Peak Efficiency
Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output.
Powerful Charge and Discharge
Handles up to 100A (5kW) charge discharge from batteries allowing fast charging and covering larger loads.
Reliable Operation
Emergency Power Supply (EPS)
Backup power is available for critical installations that require uninterrupted operation during power outages.
Rapid Switch Time
Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages.
Shadow Scan Feature
Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade.
Smart Energy Management
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
Â
Octopus Tariff Integration
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
Â
HANCHU ESS – SINGLE PHASE HYBRID INVERTER – CLICK HERE FOR FEATURES
Â
12 Years Warranty On All Hanchu Products.
All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.
HESS-HY-S-6.0K
The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3 3.68 4 5 6kW, catering to various scales and application scenarios.
Technical Specifications
PV Input
- Max. PV array power : 9000Wp
-
- Max. input voltage : 550V
-
- MPPT voltage range rated input voltage : 40V to 530V 380V
-
- Min. input voltage start voltage : 40V 50V
-
- No. of independent MPPT trackers strings per MPPT input : 2 1
-
- Max. input current per MPP tracker : 16A
-
- Max. short-circuit current per MPP tracker : 20A
-
Battery Input
- Nominal battery voltage : 48V 51.2V
-
- Battery voltage range : 40V to 60V
-
- Max. charging discharge power : 5000W 5000W
-
- Max. charging current Max. discharging current : 100A 100A
-
- Battery type : LFP
-
AC Output
- AC voltage range Nomlnal AC voltage : 180V to 280V 230V
-
- Rated AC grid frequency : 50Hz 60Hz
-
- Rated apparent power : 6000VA
-
- Max. apparent power : 6000VA
-
- Rated grid output current (@230V) : 26.1A
-
- Max. grid output current : 27.3A
-
AC Input
- Rated grid voltage : a.c.230V
-
- Rated apparent power : 6000VA
-
- Max. input apparent power from grid : 6000VA
-
- Rated input curent from grid : a.c.26.1 A
-
- Max. input current from grid : a.c.27.3 A
-
EPS Output
- Nominal output voltage : 230V
-
- Nominal output frequency : 50 Hz 60Hz
-
- Rated apparent power : 5000VA
-
- Max. output apparent power : 5000VA
-
- Peak output apparent power : 7500 VA | 10s
-
- Max. output current : 21.7A
-
- Max. switch time : ≤10ms
-
Efficiency
- MPPT efficiency : 99.90%
-
- Euro efficiency Max. efficiency : 97% 97.6%
-
- Max. battery to load efficiency : 94.70%
-
General Data
- Dimensions (W*H*D) (mm) : 483*455*193.5
-
- Device weight : 25.1Kg
-
- Operating temperature range : -25℃ ~60℃
-
- Noise emissions (typical) : 30 dB(A)
-
- Standby consumption : <10 W
-
- Degree of protection (as per lEC 60529) : IP66
-
Features
- User interface : LED & APP
-
- Communication with BMS : RS485 CAN
-
- Communication with meter : RS485
-
- Communication with portal : WiFi LAN 4G Bluetooth
-
- Other communication : DRM
-
- Communication :
-
- Integrated power control Zero export control : Integrated Integrated
-
- Certifications : EN 61000 IEC 62109 EN 50549 G98 G99 G100 VDE 4105 VFR 2019 NRS 097 CEI 0-21 NTS IEC 61683 IEC 61727 IEC 62116
-
- Warranty : 12 years
-
Title
Default Title
Review Cart
High PV Input Capability
Supports up to 150% oversizing to allow maximum annual generation.
Peak Efficiency
Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output.
Powerful Charge and Discharge
Handles up to 100A (5kW) charge discharge from batteries allowing fast charging and covering larger loads.
Reliable Operation
Emergency Power Supply (EPS)
Backup power is available for critical installations that require uninterrupted operation during power outages.
Rapid Switch Time
Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages.
Shadow Scan Feature
Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade.
Smart Energy Management
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
Â
Octopus Tariff Integration
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
Â
HANCHU ESS – SINGLE PHASE HYBRID INVERTER – CLICK HERE FOR FEATURES
Â
12 Years Warranty On All Hanchu Products.
All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.
HESS-HY-S-6.0K
The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3 3.68 4 5 6kW, catering to various scales and application scenarios.
Technical Specifications
PV Input
- Max. PV array power : 9000Wp
-
- Max. input voltage : 550V
-
- MPPT voltage range rated input voltage : 40V to 530V 380V
-
- Min. input voltage start voltage : 40V 50V
-
- No. of independent MPPT trackers strings per MPPT input : 2 1
-
- Max. input current per MPP tracker : 16A
-
- Max. short-circuit current per MPP tracker : 20A
-
Battery Input
- Nominal battery voltage : 48V 51.2V
-
- Battery voltage range : 40V to 60V
-
- Max. charging discharge power : 5000W 5000W
-
- Max. charging current Max. discharging current : 100A 100A
-
- Battery type : LFP
-
AC Output
- AC voltage range Nomlnal AC voltage : 180V to 280V 230V
-
- Rated AC grid frequency : 50Hz 60Hz
-
- Rated apparent power : 6000VA
-
- Max. apparent power : 6000VA
-
- Rated grid output current (@230V) : 26.1A
-
- Max. grid output current : 27.3A
-
AC Input
- Rated grid voltage : a.c.230V
-
- Rated apparent power : 6000VA
-
- Max. input apparent power from grid : 6000VA
-
- Rated input curent from grid : a.c.26.1 A
-
- Max. input current from grid : a.c.27.3 A
-
EPS Output
- Nominal output voltage : 230V
-
- Nominal output frequency : 50 Hz 60Hz
-
- Rated apparent power : 5000VA
-
- Max. output apparent power : 5000VA
-
- Peak output apparent power : 7500 VA | 10s
-
- Max. output current : 21.7A
-
- Max. switch time : ≤10ms
-
Efficiency
- MPPT efficiency : 99.90%
-
- Euro efficiency Max. efficiency : 97% 97.6%
-
- Max. battery to load efficiency : 94.70%
-
General Data
- Dimensions (W*H*D) (mm) : 483*455*193.5
-
- Device weight : 25.1Kg
-
- Operating temperature range : -25℃ ~60℃
-
- Noise emissions (typical) : 30 dB(A)
-
- Standby consumption : <10 W
-
- Degree of protection (as per lEC 60529) : IP66
-
Features
- User interface : LED & APP
-
- Communication with BMS : RS485 CAN
-
- Communication with meter : RS485
-
- Communication with portal : WiFi LAN 4G Bluetooth
-
- Other communication : DRM
-
- Communication :
-
- Integrated power control Zero export control : Integrated Integrated
-
- Certifications : EN 61000 IEC 62109 EN 50549 G98 G99 G100 VDE 4105 VFR 2019 NRS 097 CEI 0-21 NTS IEC 61683 IEC 61727 IEC 62116
-
- Warranty : 12 years
-
Title
Default Title
Review Cart
Emergency Power Supply (EPS)
Backup power is available for critical installations that require uninterrupted operation during power outages.
Rapid Switch Time
Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages.
Shadow Scan Feature
Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade.
Smart Energy Management
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
Â
Octopus Tariff Integration
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
Â
HANCHU ESS – SINGLE PHASE HYBRID INVERTER – CLICK HERE FOR FEATURES
Â
12 Years Warranty On All Hanchu Products.
All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.
HESS-HY-S-6.0K
The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3 3.68 4 5 6kW, catering to various scales and application scenarios.
Technical Specifications
PV Input
- Max. PV array power : 9000Wp
-
- Max. input voltage : 550V
-
- MPPT voltage range rated input voltage : 40V to 530V 380V
-
- Min. input voltage start voltage : 40V 50V
-
- No. of independent MPPT trackers strings per MPPT input : 2 1
-
- Max. input current per MPP tracker : 16A
-
- Max. short-circuit current per MPP tracker : 20A
-
Battery Input
- Nominal battery voltage : 48V 51.2V
-
- Battery voltage range : 40V to 60V
-
- Max. charging discharge power : 5000W 5000W
-
- Max. charging current Max. discharging current : 100A 100A
-
- Battery type : LFP
-
AC Output
- AC voltage range Nomlnal AC voltage : 180V to 280V 230V
-
- Rated AC grid frequency : 50Hz 60Hz
-
- Rated apparent power : 6000VA
-
- Max. apparent power : 6000VA
-
- Rated grid output current (@230V) : 26.1A
-
- Max. grid output current : 27.3A
-
AC Input
- Rated grid voltage : a.c.230V
-
- Rated apparent power : 6000VA
-
- Max. input apparent power from grid : 6000VA
-
- Rated input curent from grid : a.c.26.1 A
-
- Max. input current from grid : a.c.27.3 A
-
EPS Output
- Nominal output voltage : 230V
-
- Nominal output frequency : 50 Hz 60Hz
-
- Rated apparent power : 5000VA
-
- Max. output apparent power : 5000VA
-
- Peak output apparent power : 7500 VA | 10s
-
- Max. output current : 21.7A
-
- Max. switch time : ≤10ms
-
Efficiency
- MPPT efficiency : 99.90%
-
- Euro efficiency Max. efficiency : 97% 97.6%
-
- Max. battery to load efficiency : 94.70%
-
General Data
- Dimensions (W*H*D) (mm) : 483*455*193.5
-
- Device weight : 25.1Kg
-
- Operating temperature range : -25℃ ~60℃
-
- Noise emissions (typical) : 30 dB(A)
-
- Standby consumption : <10 W
-
- Degree of protection (as per lEC 60529) : IP66
-
Features
- User interface : LED & APP
-
- Communication with BMS : RS485 CAN
-
- Communication with meter : RS485
-
- Communication with portal : WiFi LAN 4G Bluetooth
-
- Other communication : DRM
-
- Communication :
-
- Integrated power control Zero export control : Integrated Integrated
-
- Certifications : EN 61000 IEC 62109 EN 50549 G98 G99 G100 VDE 4105 VFR 2019 NRS 097 CEI 0-21 NTS IEC 61683 IEC 61727 IEC 62116
-
- Warranty : 12 years
-
Title
Default Title
Review Cart
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
Â
Octopus Tariff Integration
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
Â
HANCHU ESS – SINGLE PHASE HYBRID INVERTER – CLICK HERE FOR FEATURES
Â
12 Years Warranty On All Hanchu Products.
All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.

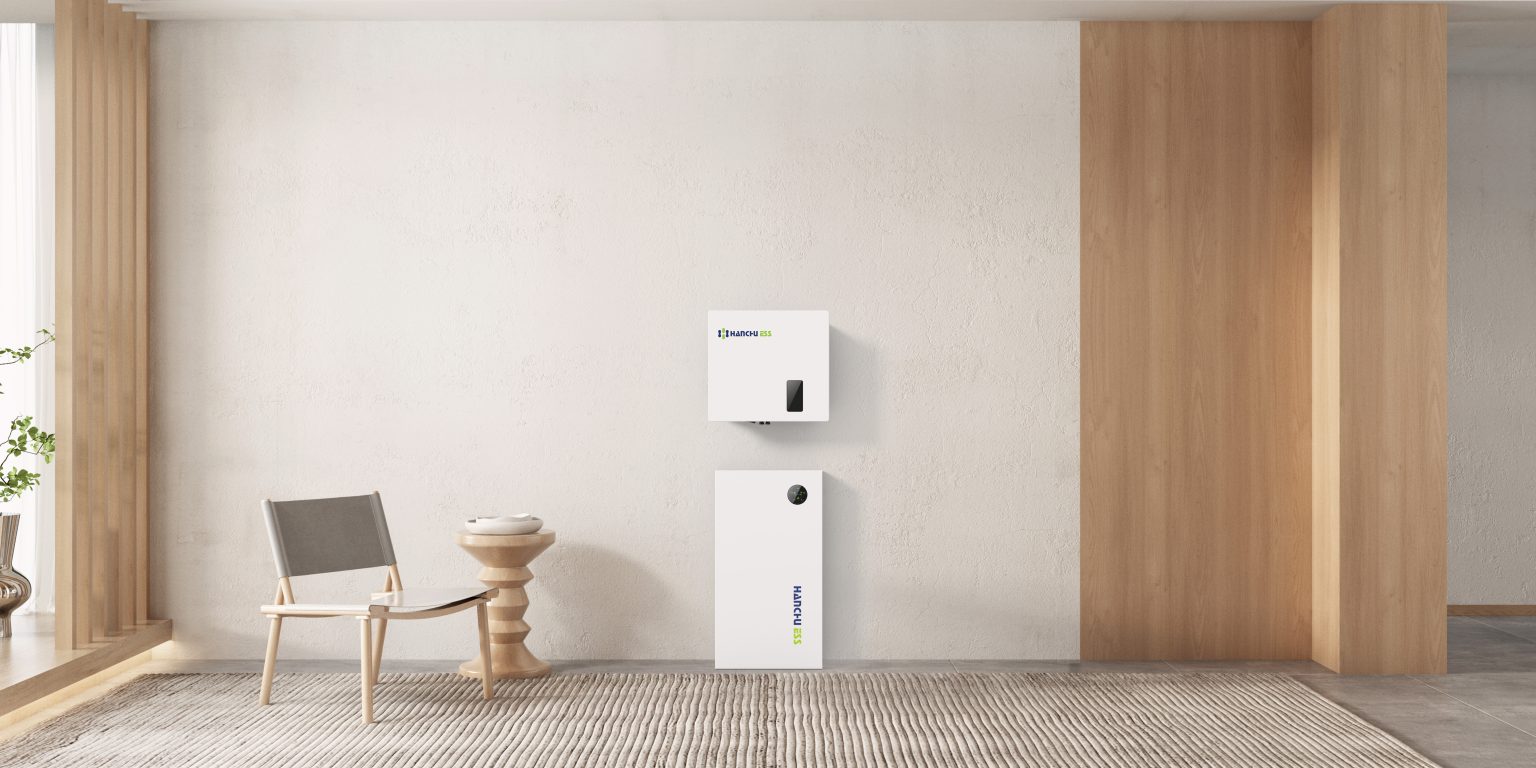

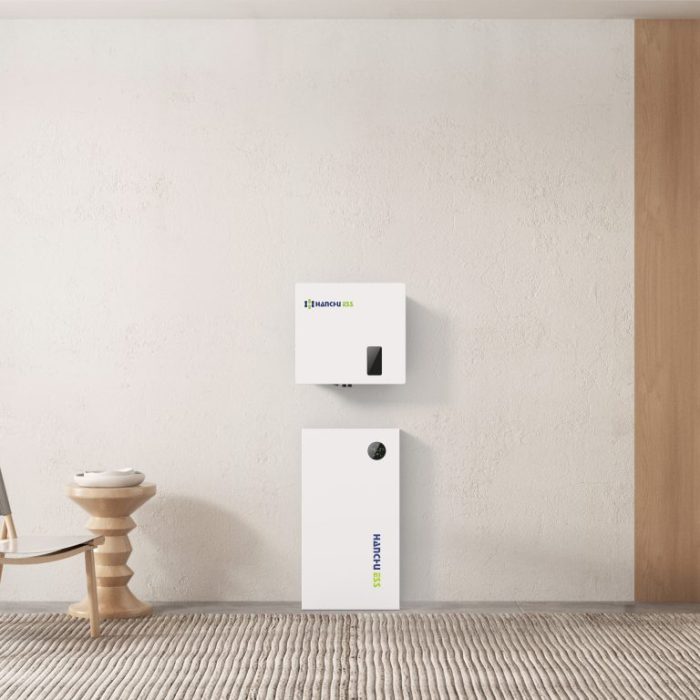

HESS-HY-S-6.0K
The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3 3.68 4 5 6kW, catering to various scales and application scenarios.
Technical Specifications
PV Input
- Max. PV array power : 9000Wp
-
- Max. input voltage : 550V
-
- MPPT voltage range rated input voltage : 40V to 530V 380V
-
- Min. input voltage start voltage : 40V 50V
-
- No. of independent MPPT trackers strings per MPPT input : 2 1
-
- Max. input current per MPP tracker : 16A
-
- Max. short-circuit current per MPP tracker : 20A
-
Battery Input
- Nominal battery voltage : 48V 51.2V
-
- Battery voltage range : 40V to 60V
-
- Max. charging discharge power : 5000W 5000W
-
- Max. charging current Max. discharging current : 100A 100A
-
- Battery type : LFP
-
AC Output
- AC voltage range Nomlnal AC voltage : 180V to 280V 230V
-
- Rated AC grid frequency : 50Hz 60Hz
-
- Rated apparent power : 6000VA
-
- Max. apparent power : 6000VA
-
- Rated grid output current (@230V) : 26.1A
-
- Max. grid output current : 27.3A
-
AC Input
- Rated grid voltage : a.c.230V
-
- Rated apparent power : 6000VA
-
- Max. input apparent power from grid : 6000VA
-
- Rated input curent from grid : a.c.26.1 A
-
- Max. input current from grid : a.c.27.3 A
-
EPS Output
- Nominal output voltage : 230V
-
- Nominal output frequency : 50 Hz 60Hz
-
- Rated apparent power : 5000VA
-
- Max. output apparent power : 5000VA
-
- Peak output apparent power : 7500 VA | 10s
-
- Max. output current : 21.7A
-
- Max. switch time : ≤10ms
-
Efficiency
- MPPT efficiency : 99.90%
-
- Euro efficiency Max. efficiency : 97% 97.6%
-
- Max. battery to load efficiency : 94.70%
-
General Data
- Dimensions (W*H*D) (mm) : 483*455*193.5
-
- Device weight : 25.1Kg
-
- Operating temperature range : -25℃ ~60℃
-
- Noise emissions (typical) : 30 dB(A)
-
- Standby consumption : <10 W
-
- Degree of protection (as per lEC 60529) : IP66
-
Features
- User interface : LED & APP
-
- Communication with BMS : RS485 CAN
-
- Communication with meter : RS485
-
- Communication with portal : WiFi LAN 4G Bluetooth
-
- Other communication : DRM
-
- Communication :
-
- Integrated power control Zero export control : Integrated Integrated
-
- Certifications : EN 61000 IEC 62109 EN 50549 G98 G99 G100 VDE 4105 VFR 2019 NRS 097 CEI 0-21 NTS IEC 61683 IEC 61727 IEC 62116
-
- Warranty : 12 years
-
Title
Default Title
Review Cart
- Max. PV array power : 9000Wp
- Max. input voltage : 550V
- MPPT voltage range rated input voltage : 40V to 530V 380V
- Min. input voltage start voltage : 40V 50V
- No. of independent MPPT trackers strings per MPPT input : 2 1
- Max. input current per MPP tracker : 16A
- Max. short-circuit current per MPP tracker : 20A
-
- Nominal battery voltage : 48V 51.2V
- Battery voltage range : 40V to 60V
- Max. charging discharge power : 5000W 5000W
- Max. charging current Max. discharging current : 100A 100A
- Battery type : LFP
-
- AC voltage range Nomlnal AC voltage : 180V to 280V 230V
- Rated AC grid frequency : 50Hz 60Hz
- Rated apparent power : 6000VA
- Max. apparent power : 6000VA
- Rated grid output current (@230V) : 26.1A
- Max. grid output current : 27.3A
-
- Rated grid voltage : a.c.230V
- Rated apparent power : 6000VA
- Max. input apparent power from grid : 6000VA
- Rated input curent from grid : a.c.26.1 A
- Max. input current from grid : a.c.27.3 A
-
- Nominal output voltage : 230V
- Nominal output frequency : 50 Hz 60Hz
- Rated apparent power : 5000VA
- Max. output apparent power : 5000VA
- Peak output apparent power : 7500 VA | 10s
- Max. output current : 21.7A
- Max. switch time : ≤10ms
-
- MPPT efficiency : 99.90%
- Euro efficiency Max. efficiency : 97% 97.6%
- Max. battery to load efficiency : 94.70%
-
- Dimensions (W*H*D) (mm) : 483*455*193.5
- Device weight : 25.1Kg
- Operating temperature range : -25℃ ~60℃
- Noise emissions (typical) : 30 dB(A)
- Standby consumption : <10 W
- Degree of protection (as per lEC 60529) : IP66
-
- User interface : LED & APP
- Communication with BMS : RS485 CAN
- Communication with meter : RS485
- Communication with portal : WiFi LAN 4G Bluetooth
- Other communication : DRM
- Communication :
- Integrated power control Zero export control : Integrated Integrated
- Certifications : EN 61000 IEC 62109 EN 50549 G98 G99 G100 VDE 4105 VFR 2019 NRS 097 CEI 0-21 NTS IEC 61683 IEC 61727 IEC 62116
- Warranty : 12 years
-
Title Default Title
FeaturesReview Cart
General Data
Efficiency
EPS Output
AC Input
AC Output
Battery Input
